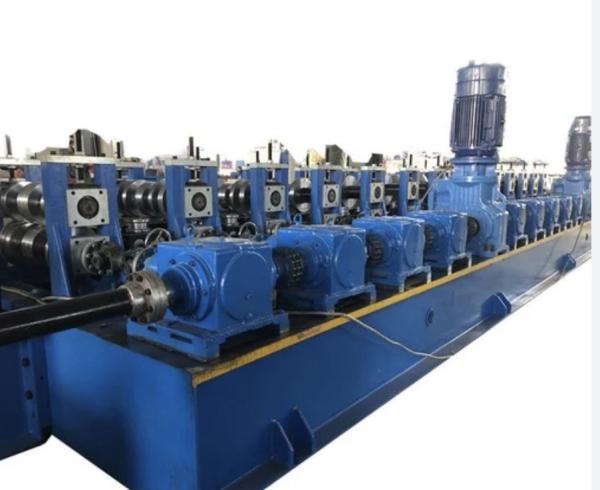

Highway Guardrail Forming Machine The Ultimate Solution for Highway Guardrail Manufacturing
Product Description:
The Highway Guardrail Roll Forming Machine is specialized industrial gear designed for creating standardized crash barrier systems through the application of cold roll forming technology. By utilizing high - strength steel coils (typically Q235/Q345 grades), it changes raw materials into corrugated guardrail panels (W - beam or Thrie - beam profiles) that meet the safety standards of ASTM/AASHTO.
Production Display:
Technical Parameters:
| Suitable material | Color steel sheet , galvanized steel sheet |
| Main motor power | 7.5KW with Cycloidal reducer |
| Hydraulic station power | 11KW |
| Hydraulic oil | 40# |
| Thickness | 1.0mm~5.0 mm |
| Diameter | Φ70mm |
| Electric tension | 380V 3phase 50HZ |
| Material of roller | High grade 45# forged steel |
| Rolling galvanization thickness | 0.05mm |
| Processing speed | 10- 30 m/min |
| Processing precision within | 10m+/-1.00mm |
| Material of cutting blade | Cr12 quenched |
Applications:
Production Process:
Packing and Shipping:
FAQ:
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
